FIG. 02Working project / Manual
Two Compartments
One divider creates two compartments for keeping different pieces apart.
Dividers and assembly
Follow the walls: one divider, crossing plates, branching T connections, and larger grids. Each drawing shows the compartments and the panels that make them.
FIG. 02
FIG. 03
FIG. 04

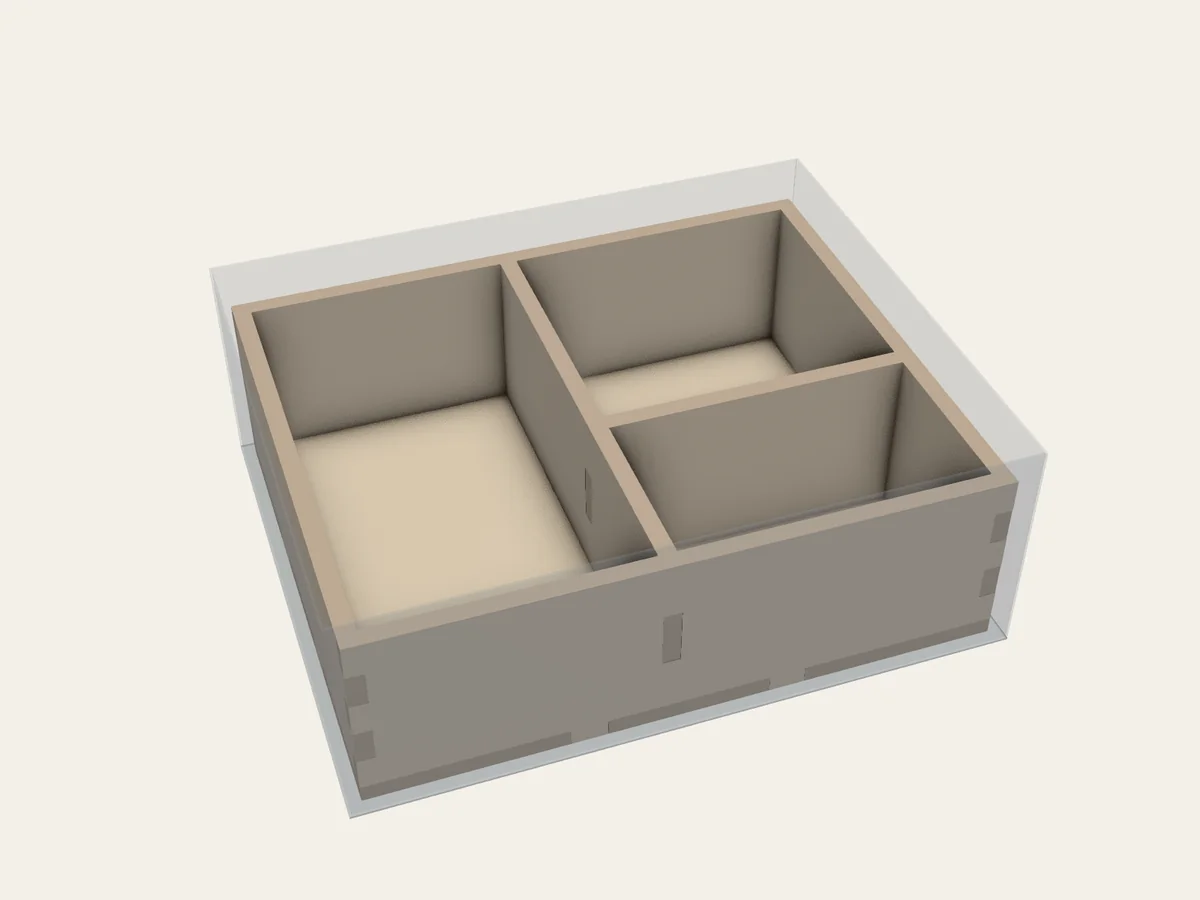

FIG. 09Working project / Manual
Mixed T Grid
A long divider and one shorter branch form three compartments in a T shape.
FIG. 10Working project / Manual
Aligned 2x2 Grid
Two crossing dividers make four evenly arranged compartments.
FIG. 23Working project / Manual
Staggered Double T Grid
Two shorter dividers meet a long central wall at different positions, forming four compartments.
FIG. 24Working project / Manual
Partial T Network
Several short branches off a main divider create a run of smaller compartments.
FIG. 25Working project / Manual
Aligned 2x3 Grid
Continuous crossing dividers make a tidy two by three grid of compartments.
FIG. 33Working project / Manual
Aligned 3x3 Grid
Three columns crossed with three rows create nine regular compartments.

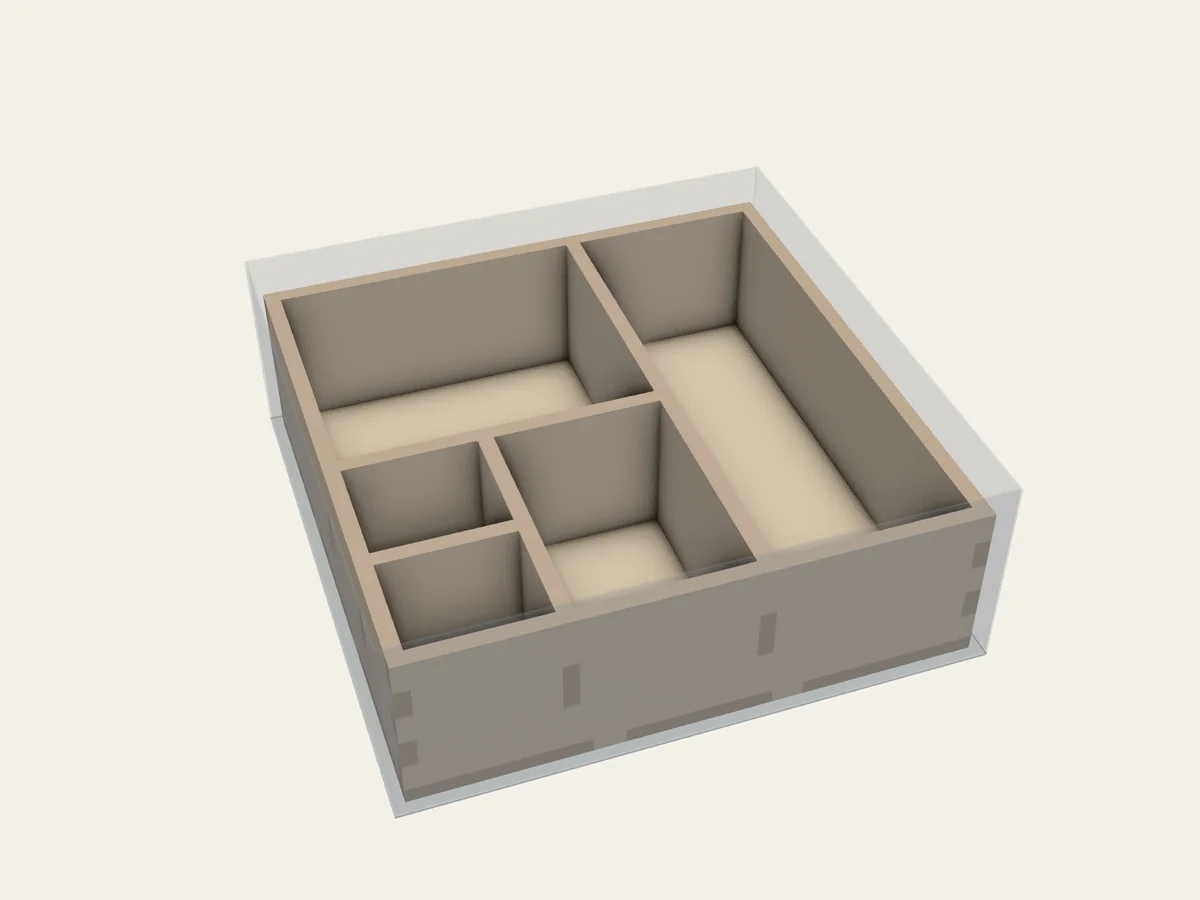

FIG. 45Working project / Manual
Nested Edge T
Short dividers branch through a corner of the tray, making compartments of several sizes.
FIG. 46Working project / Manual
Mirrored Nested Edge T
The branched divider layout is mirrored into the opposite corner of the tray.
FIG. 47Working project / Manual
Banded T Grid
Three columns have dividers at different depths, making six compartments with staggered boundaries.
FIG. 52Working project / Manual
Nested Banded T Grid
A small extra divider splits one space inside a wider, staggered compartment grid.
FIG. 53Working project / Manual
Mixed Assembly Templates
The design places a plain open box beside a more detailed divider tray.

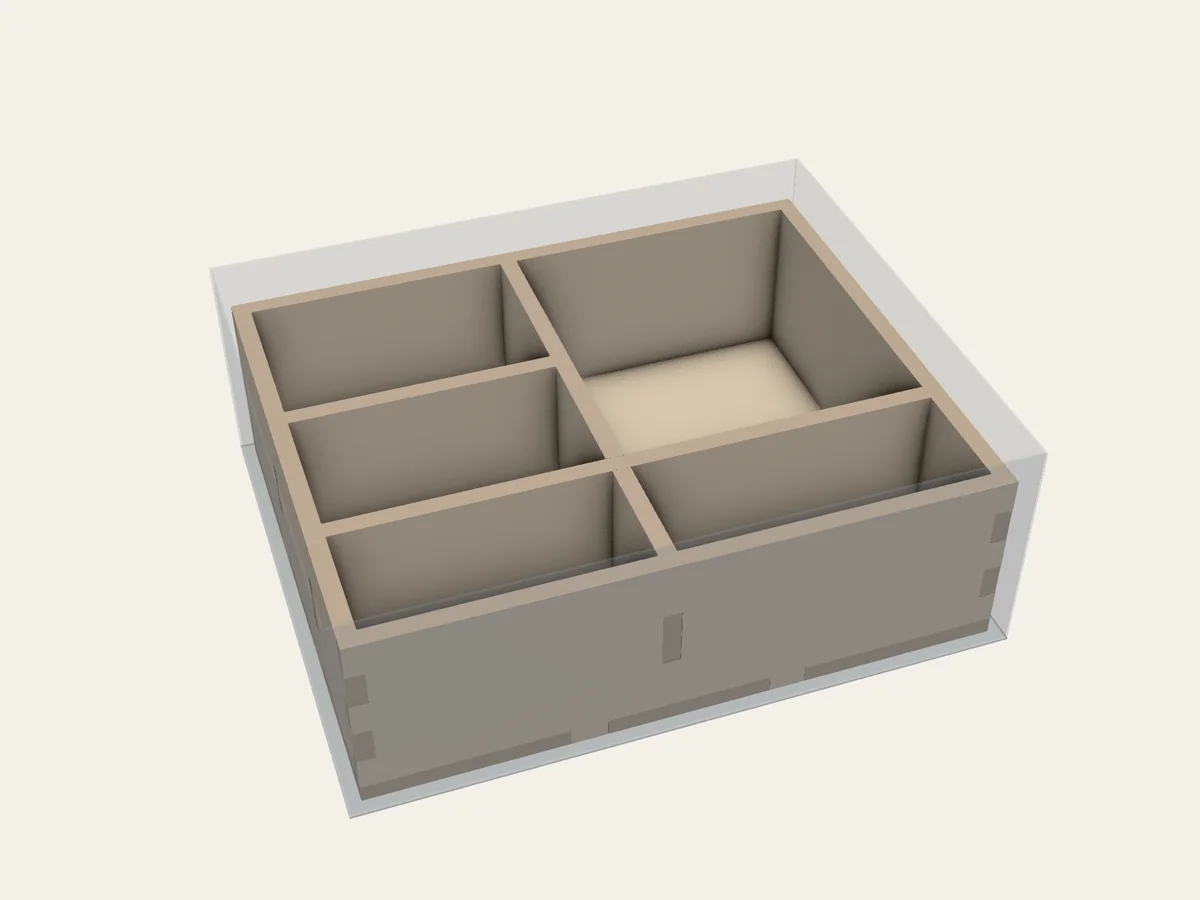

FIG. 54Working project / Manual
Mixed Crossing and T Network Grid
Crossing and branching dividers work together to make compartments of different sizes.
FIG. 55Working project / Manual
Banded Crossing and T Grid
One long cross divider spans two columns while a shorter divider branches across the third.

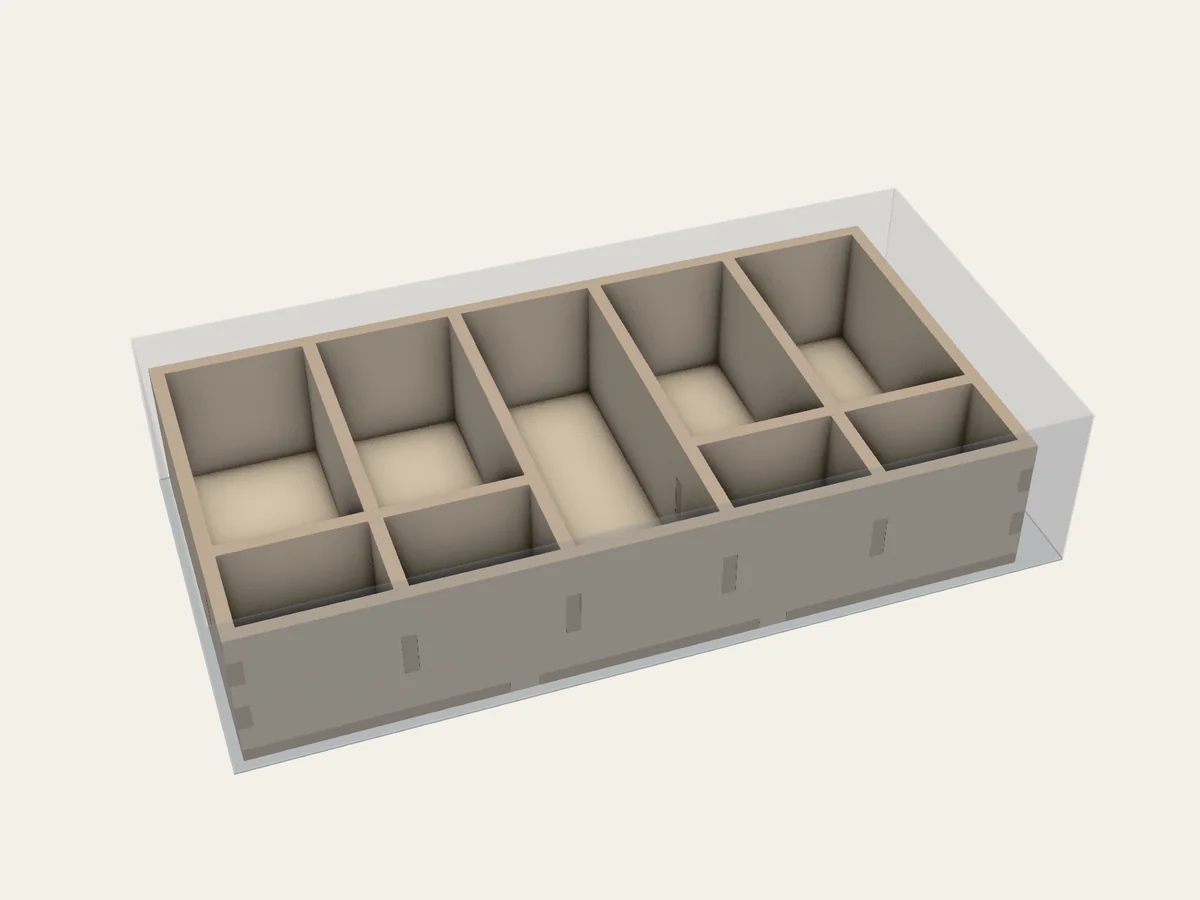

FIG. 56Working project / Manual
Local Receiver Closure Grid
Two separate cross dividers leave a gap through the middle of this compartment grid.

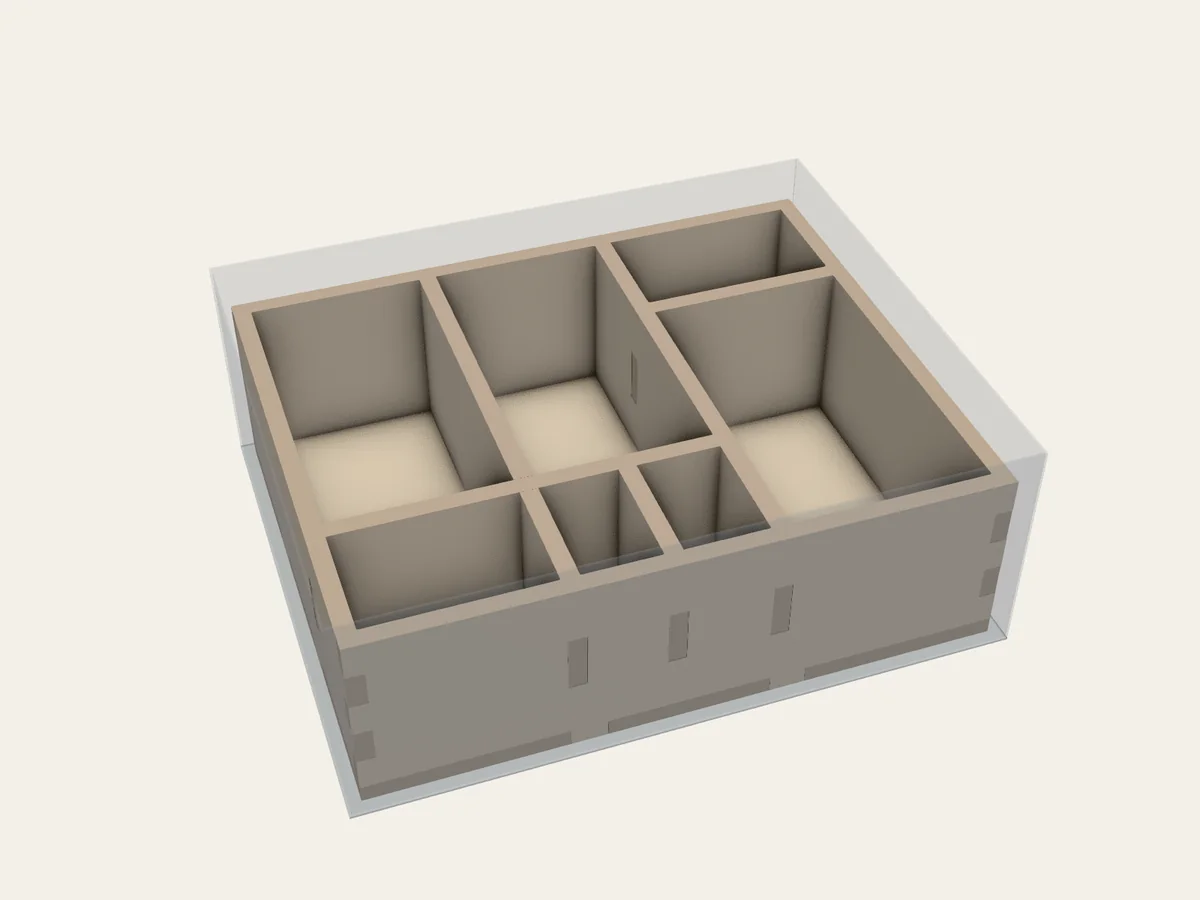

FIG. 57Working project / Manual
Nested Banded Crossing and T Grid
A staggered grid combines a long cross divider with a smaller branch nested inside it.

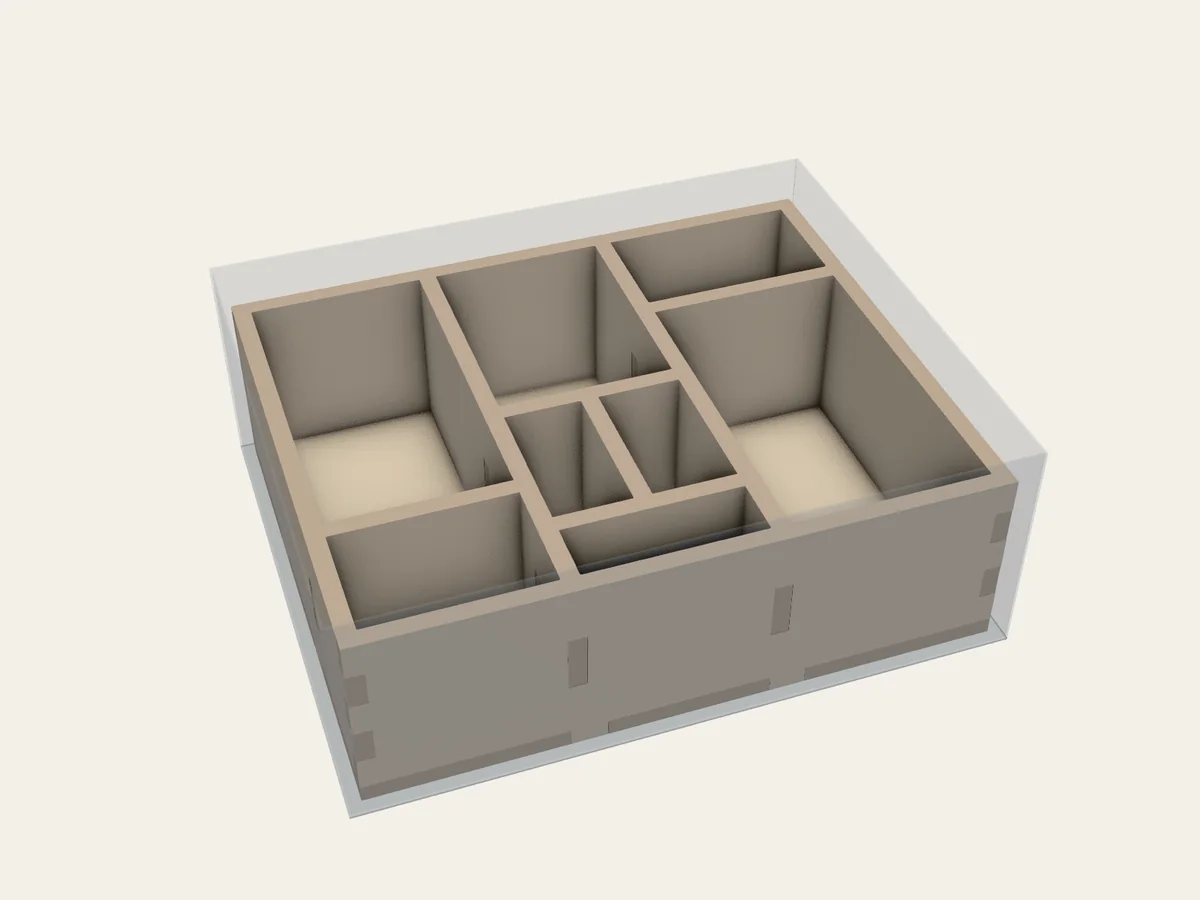

FIG. 58Working project / Manual
Internal Banded T Grid
A short internal divider joins two longer walls, splitting the space between them.

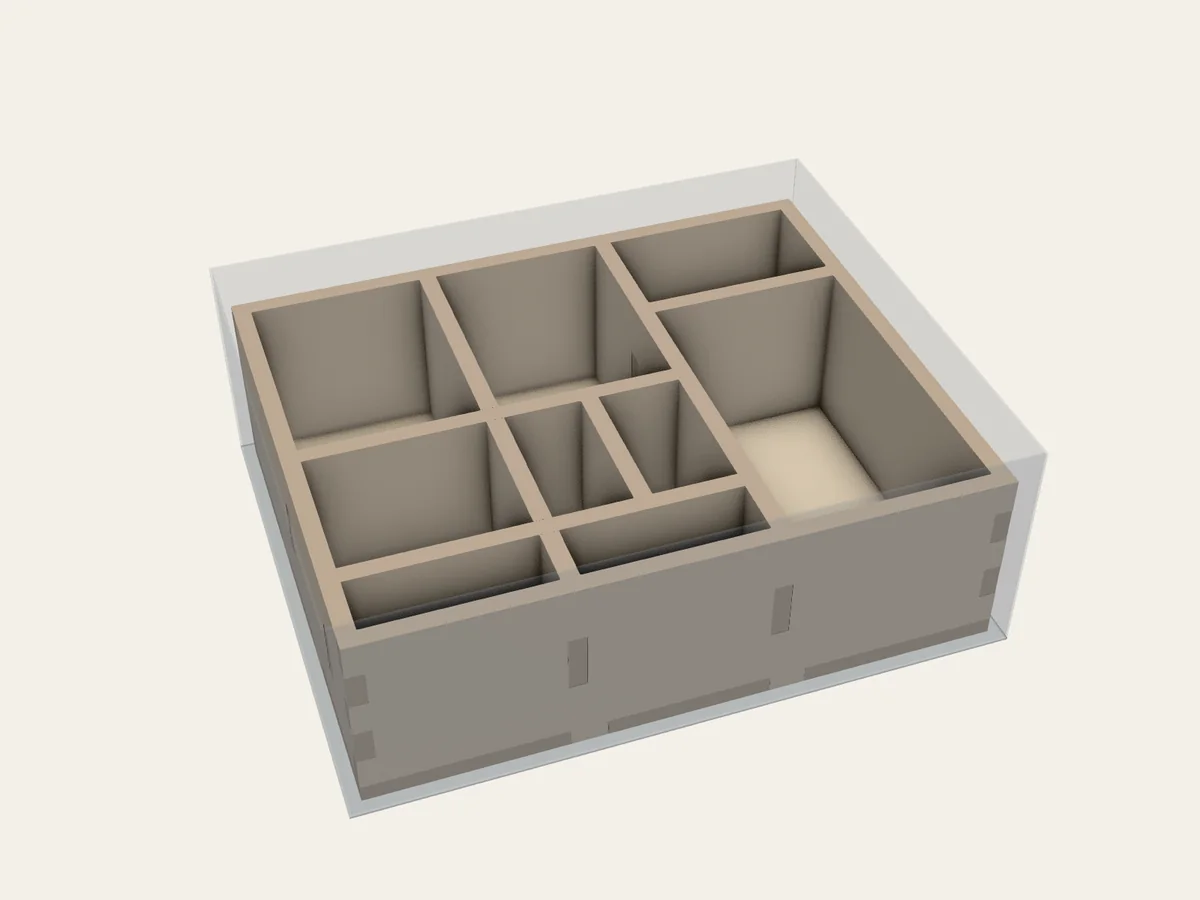

FIG. 59Working project / Manual
Raised Main Divider Grid
Tall main dividers support several shorter branches in a dense compartment layout.
FIG. 60Working project / Manual
Recursive Internal T Grid
A series of short dividers splits spaces within spaces to make a detailed tray.
FIG. 61Working project / Manual
Recursive Crossing and T Grid
Several crossing and branching dividers create a dense arrangement of smaller compartments.
FIG. 70Working project / Manual
Derived Manual Dimensions
A nested divider layout calculates uniquely determined compartment sizes from the box and panel thickness.
