Example 61: Recursive Crossing and T Grid

Several crossing and branching dividers create a dense arrangement of smaller compartments.

BGI / EXAMPLE 61Dimensions in mm

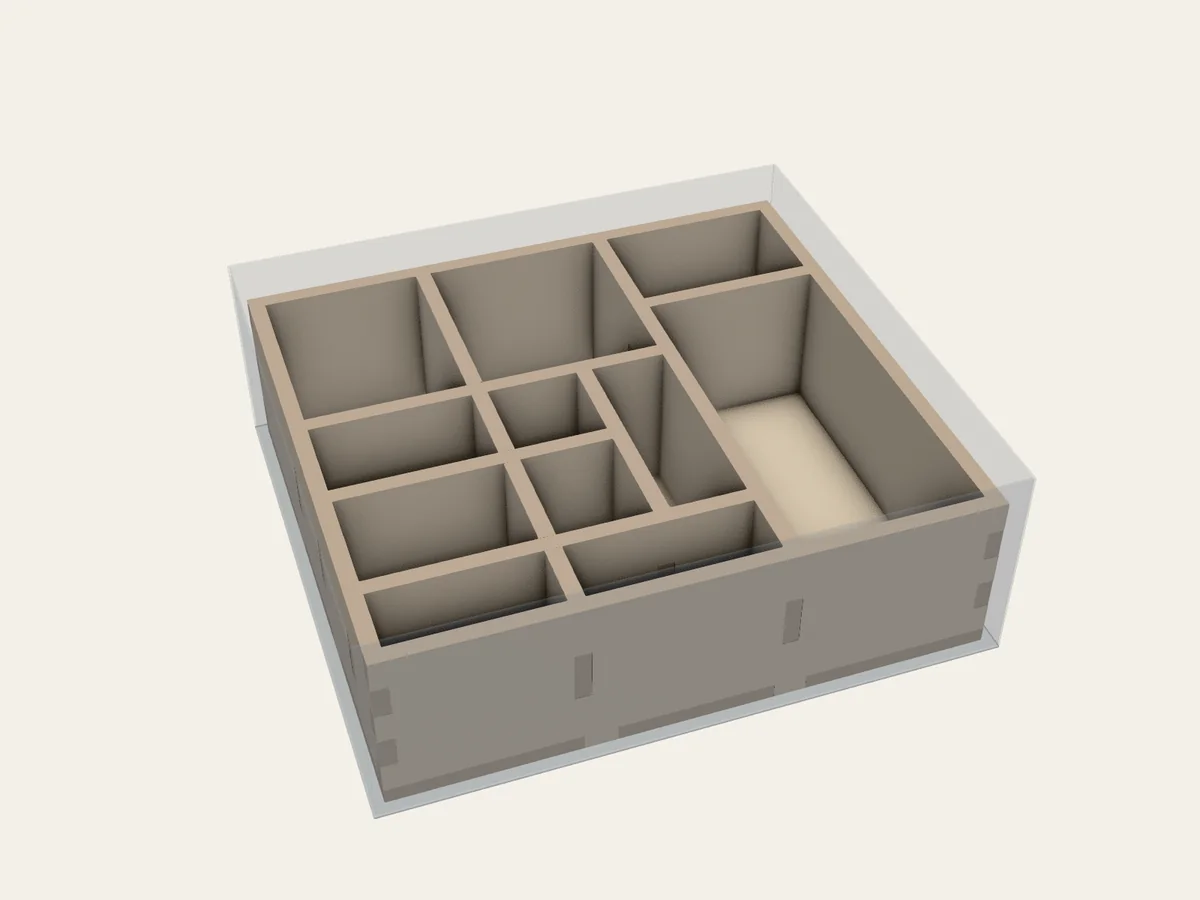

Rendered assembled view of Recursive Crossing and T Grid — The assembled insert.

The translucent outer shell shows the game box interior. Translucent blue objects are existing containers.

What to notice in the project file

This section shows the walls and compartments BGI will make:

assemblies:
- id: tray
  kind: grid
  construction: open_grid_box
  assembly: glue_allowed
  interior:
    id: all
    kind: split
    axis: x
    clear_mm:
    - 104

Full project file

The shaded lines mark that section in the complete YAML. This is the same project file linked below.

---
schema_version: 1
readme: "Several crossing and branching dividers create a dense arrangement of smaller compartments."
project:
  id: recursive-cross-t-grid
  name: Recursive Crossing and T Grid
box:
  inner_mm:
  - 114
  - 105
  - 40
  side_clearance_mm:
  - 0
  - 0
  - 0
  - 0
  top_reserve_mm: 0
material:
  profile: de-mdf-3mm
  overrides:
    thickness_mm: 3
    kerf_mm: 0.16
    fit_clearance_mm: 0.1
assemblies:
- id: tray
  kind: grid
  construction: open_grid_box
  assembly: glue_allowed
  interior:
    id: all
    kind: split
    axis: x
    clear_mm:
    - 104
    - 95
    - 30
    first:
      id: left
      kind: split
      axis: "y"
      clear_mm:
      - 30
      - 95
      - 30
      first:
        id: left-front
        kind: compartment
        clear_mm:
        - 30
        - 12
        - 30
      second:
        id: left-next
        kind: split
        axis: "y"
        clear_mm:
        - 30
        - 80
        - 30
        first:
          id: left-middle
          kind: compartment
          clear_mm:
          - 30
          - 20
          - 30
        second:
          id: left-tail
          kind: split
          axis: "y"
          clear_mm:
          - 30
          - 57
          - 30
          first:
            id: left-inner
            kind: compartment
            clear_mm:
            - 30
            - 17
            - 30
          second:
            id: left-rear
            kind: compartment
            clear_mm:
            - 30
            - 37
            - 30
    second:
      id: right-group
      kind: split
      axis: x
      clear_mm:
      - 71
      - 95
      - 30
      first:
        id: middle
        kind: split
        axis: "y"
        clear_mm:
        - 34
        - 95
        - 30
        first:
          id: front-group
          kind: split
          axis: "y"
          clear_mm:
          - 34
          - 55
          - 30
          first:
            id: front-buffer
            kind: compartment
            clear_mm:
            - 34
            - 12
            - 30
          second:
            id: middle-front
            kind: split
            axis: x
            clear_mm:
            - 34
            - 40
            - 30
            first:
              id: middle-front-left
              kind: split
              clear_mm:
              - 17
              - 40
              - 30
              axis: "y"
              first:
                id: nested-front
                kind: compartment
                clear_mm:
                - 17
                - 20
                - 30
              second:
                id: nested-back
                kind: compartment
                clear_mm:
                - 17
                - 17
                - 30
            second:
              id: middle-front-right
              kind: compartment
              clear_mm:
              - 14
              - 40
              - 30
        second:
          id: middle-back
          kind: compartment
          clear_mm:
          - 34
          - 37
          - 30
      second:
        id: right
        kind: split
        axis: "y"
        clear_mm:
        - 34
        - 95
        - 30
        first:
          id: right-front
          kind: compartment
          clear_mm:
          - 34
          - 70
          - 30
        second:
          id: right-back
          kind: compartment
          clear_mm:
          - 34
          - 22
          - 30
layout:
  mode: manual
  construction_mode: full_box
  placements:
  - id: tray
    origin_mm:
    - 2
    - 2
    rotation_deg: 0

Open 61-recursive-cross-t-grid.bgi.yaml and save a copy if you want to edit it in your own folder. Follow Plan your own layout to validate and build it.
